Roll-end opening experience

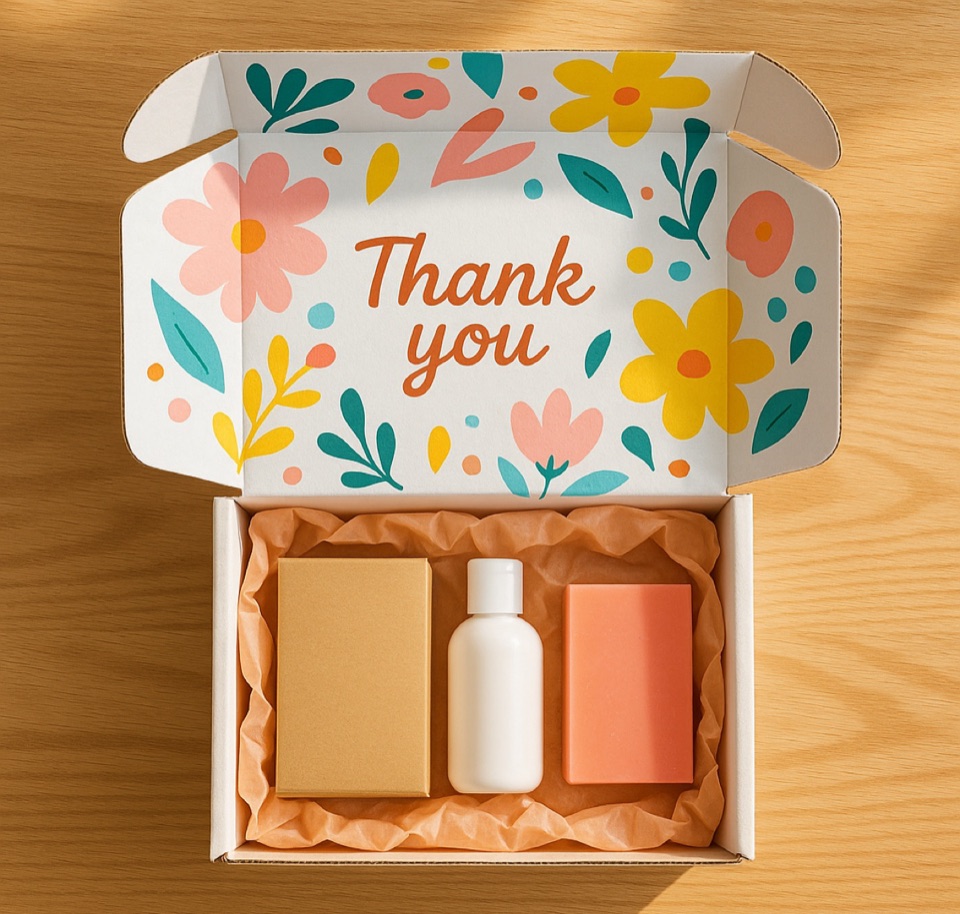

The reference shows a hinged corrugated mailer with side walls and a front tuck. Locking geometry, flute, scores, and panel depth must be redrawn to suit the confirmed product and packed load.
Mailer & shipping boxes · GS-5909249
Printed corrugated ecommerce mailer reference.
Use this inside-and-out printed roll-end mailer as a visual starting point. The production box is developed around your product dimensions, packed weight, opening sequence, artwork, packing method, and delivery route.
- Reference
- GS-5909249
- Category
- Mailer & shipping boxes
- Pricing
- Confirmed after specification
- Order basis
- Project-specific
Reference boundary: color, board construction, print process, finish, strength, inserts, MOQ, packing, and delivery are not inferred from the photo. They are confirmed from the final brief and sample.
CustomInternal dimensions
2 sidesPrint can be reviewed inside and out
FlatPack-out plan reviewed
1:1Physical sample option
What this reference shows
A visual direction—not a stock promise.
The image is useful for discussing opening action, interior artwork, product presentation, and color coverage. Engineering begins only after the real contents and route are known.
Interior and exterior artwork
Broad color fields and illustrated interior panels can be reviewed together. The chosen liner, ink process, small type, folds, and rub exposure determine the final prepress and proofing route.
Presentation with movement control
The shown tissue and sample products are styling references only. A real pack-out may need a fitted insert, paper support, divider, or another movement-control method based on fragility and the parcel journey.
Specification checklist
Confirm the decisions the image cannot answer.
A useful quotation requires more than a preferred appearance. Send the packed product data and commercial constraints so construction, print, sample scope, and logistics can be evaluated together.
- Product & fit
- Product or internal dimensions, packed weight, fragility, orientation, and acceptable movement.
- Transit route
- Destination, parcel or pallet route, handling risks, return needs, and any test standard owned by your project.
- Artwork & finish
- Print coverage, color references, liner preference, finish direction, barcodes, labels, and areas exposed to rub.
- Commercial brief
- Estimated quantity, target in-hand date, packing method, flat-storage limits, and delivery location.
Approval route
Approve fit before final artwork.
A structural sample answers whether the box folds, locks, protects, and presents the actual contents. Once that geometry is accepted, a printed proof can be used to review color, registration, folds, and opening sequence on the intended material.
- Check internal clearance and product movement with the real pack-out
- Review assembly time and closure security at the packing bench
- Keep critical artwork away from scores, locks, and hidden panels
- Confirm export packing and delivery assumptions before production
Continue the specification
Turn the reference into a production brief.
Compare the wider mailer route, check parcel-fit questions, or review the outer shipping carton when this mailer is part of a larger distribution pack.
Quote reference GS-5909249
Send the real product and route.
The quote form will carry this catalog reference into your brief. Add dimensions, packed weight, estimated quantity, destination, target date, and artwork so Kevin can reply with the next structural questions.
